NUOLIANG anti-fog film installation technical support

Installing the NUOLIANG anti-fog film is very simple. You only need a scraper or a towel to place the anti-fog film in the appropriate position on the back of the lens, make a mark, and have two people pull it flat and slowly pull down the protective paper of the anti-fog film. Starting from one end, you can apply the film to the lens to create an anti-fog lens. If the size of the anti-fog film you choose is the same as the lens, such as round or oval, you can cut off the excess part with a blade after the anti-fog film is applied flat. Note: Do not cut the heating wire.

Anti-fog mirror installation technical support

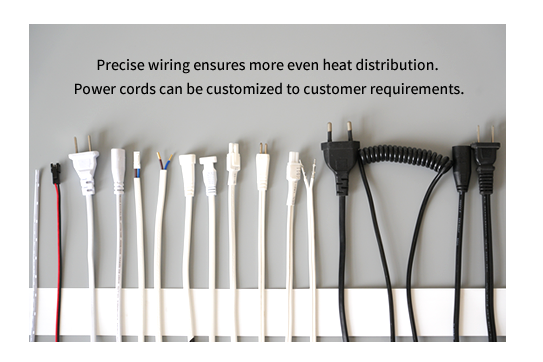

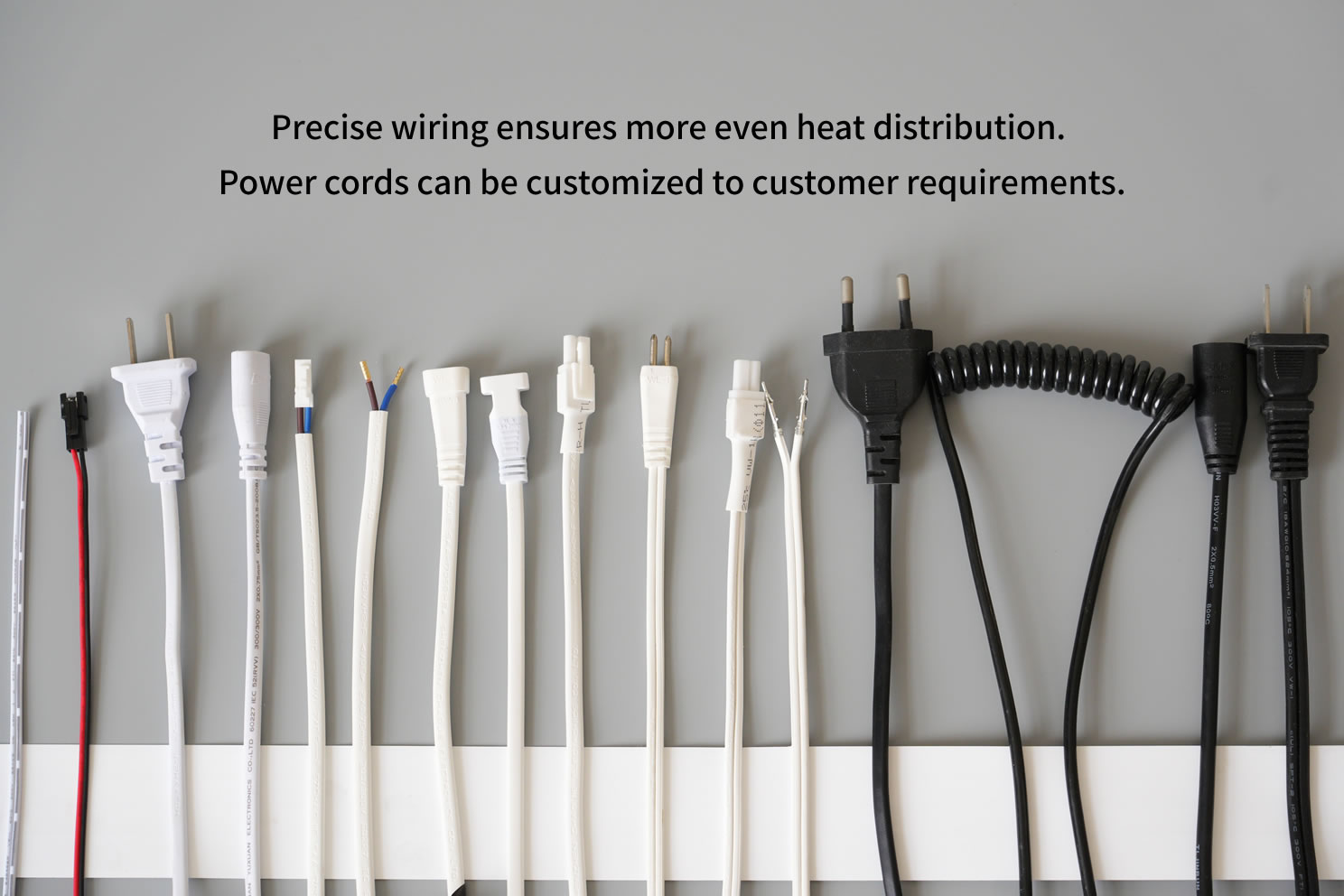

1. The installation of anti-fog goggles is similar to that of ordinary waterproof goggles, with the addition of a power cord. The anti-fog membrane's power input does not distinguish between positive and negative terminals; simply connect the power. After installation, the anti-fog goggles will activate their anti-fog effect approximately 3 minutes after power is applied.

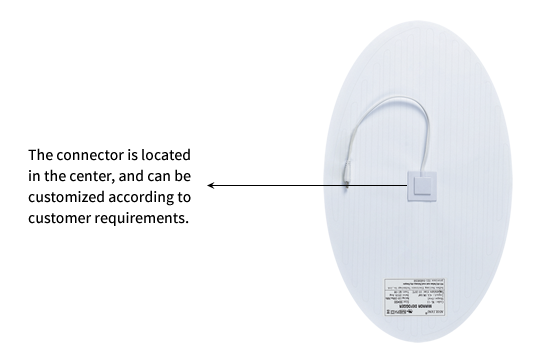

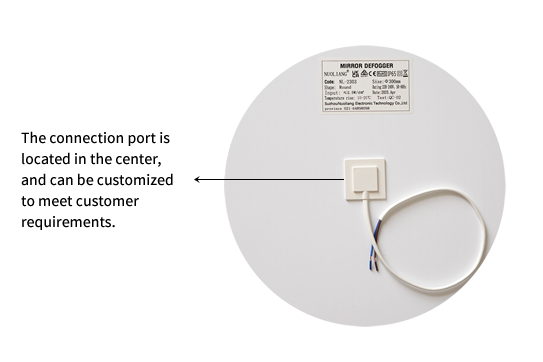

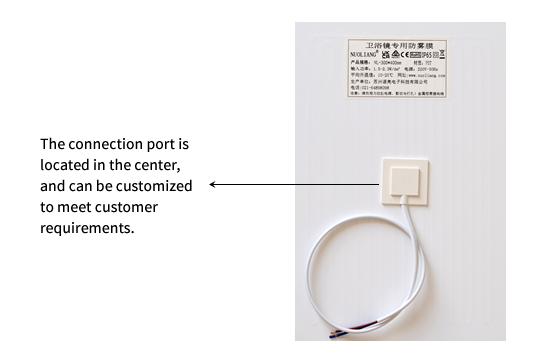

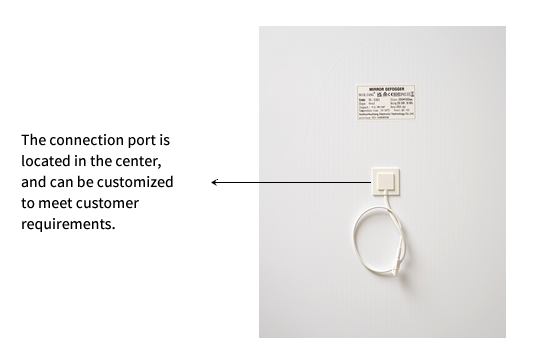

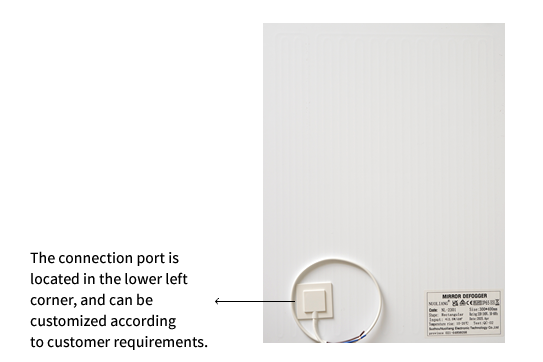

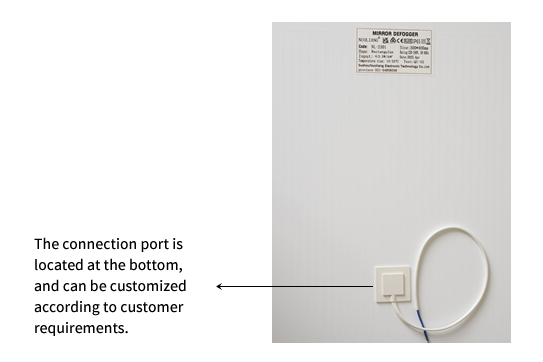

2. Junction Box Location: For ease of installation, the power supply and junction box should be installed in the location shown in the diagram.
3. Base Surface Preparation: The base surface for installing the anti-fog goggles must be dry, firm, flat, and free of sharp protrusions. After installation, the power cord may curl around the back of the lens, causing insecure and uneven installation. Therefore, the base plate in the area shown in the diagram must be removed.
4. The power cord can be routed through the pre-installed conduit. The anti-fog goggles circuit and the front light can be connected in parallel and controlled by a single switch, or the anti-fog goggles can be controlled by a separate switch.
5. Anti-fog mirrors will expand slightly when heated. When installing the mirror, there should be a gap of more than 1mm between the mirror and any hard objects (such as tiles, marble, glass mosaics, metal, etc.). Place a soft sheet about 2mm thick under the mirror. If there is no gap, the mirror is prone to breakage.

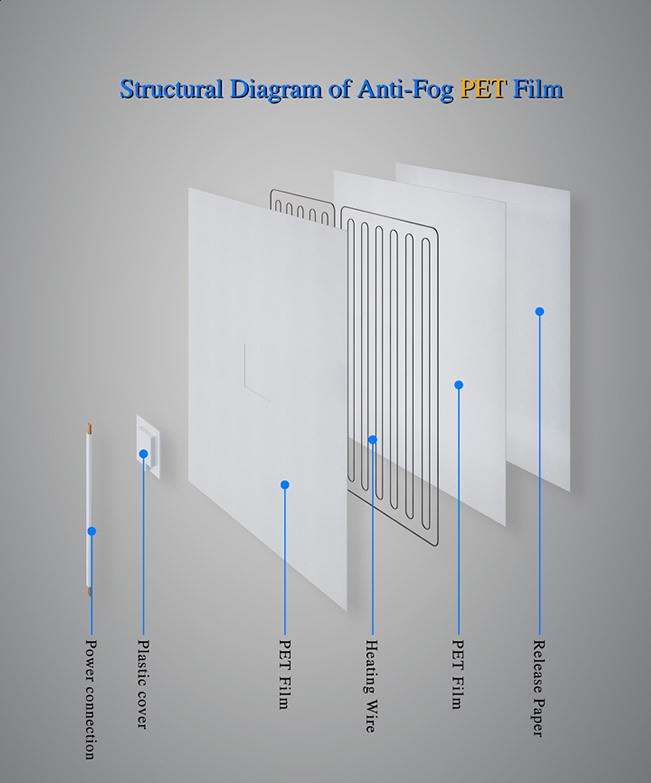

NUOLIANG anti-fog film structure diagram
